LOCATION: DELTA, BC

COLD MOLDED AS PER HULL WITH 5/16 TEAK PLANKING - LOW HOURS ON FORD LEHMAN DIESEL ENGINE - YANMAR 2 CYLINDER/7 HP DIESEL ENGINE TO 3.6 kW AUXILIARY GENERATOR - 90% COMPLETED PROJECT, PRICED TO SELL & DONATE - SURVEY AVAILABLE

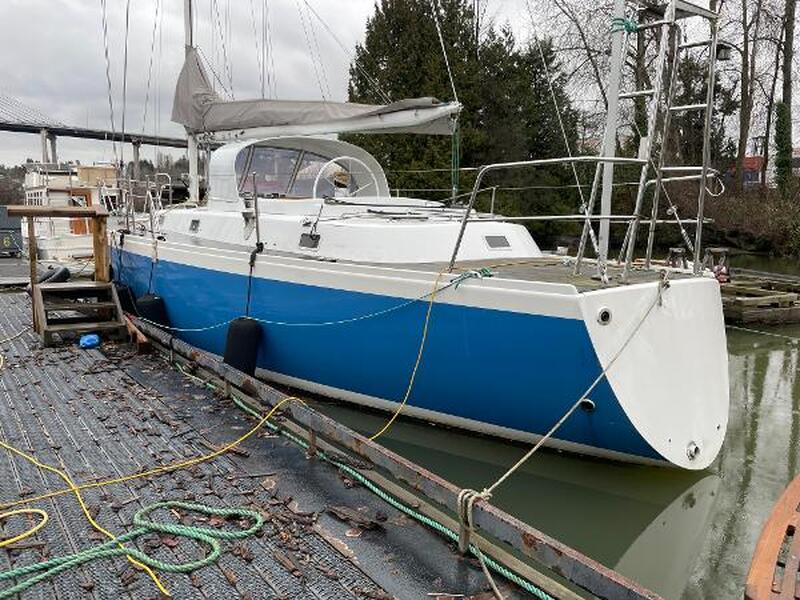

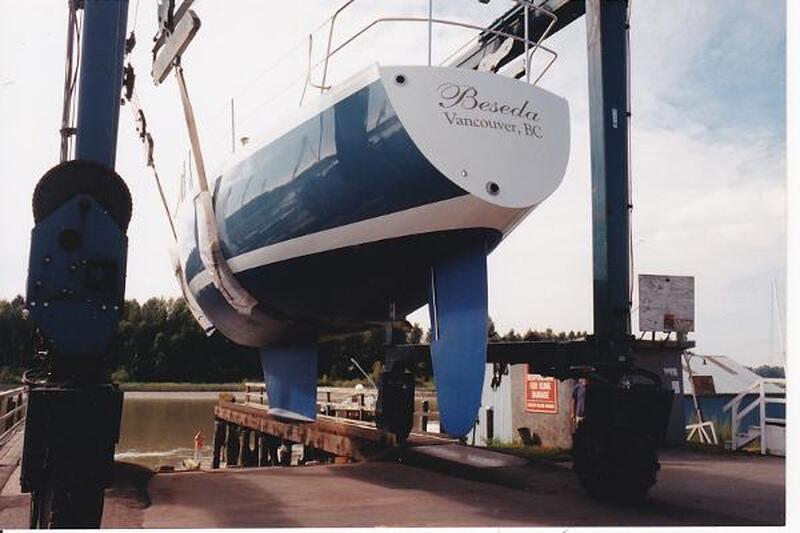

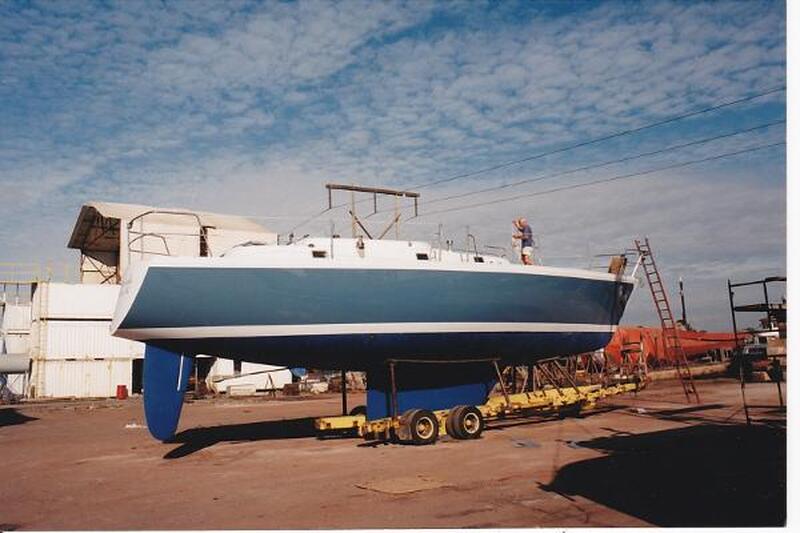

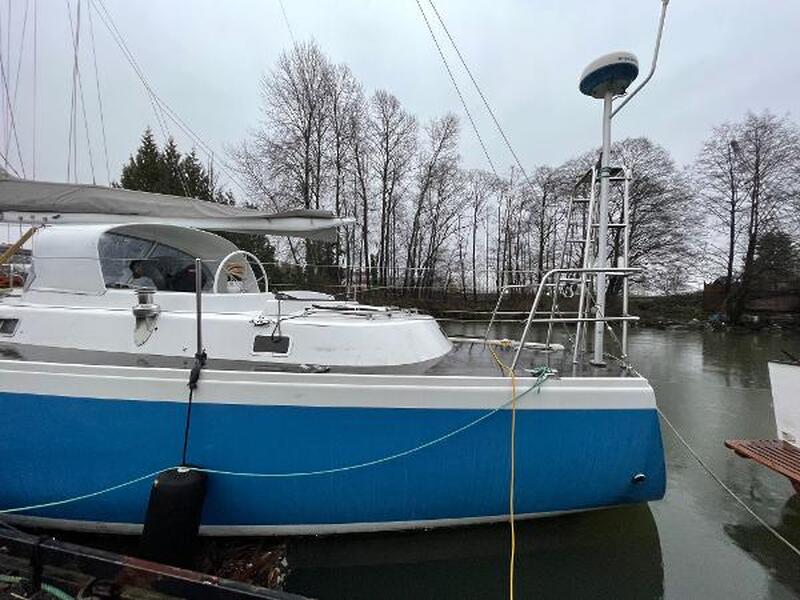

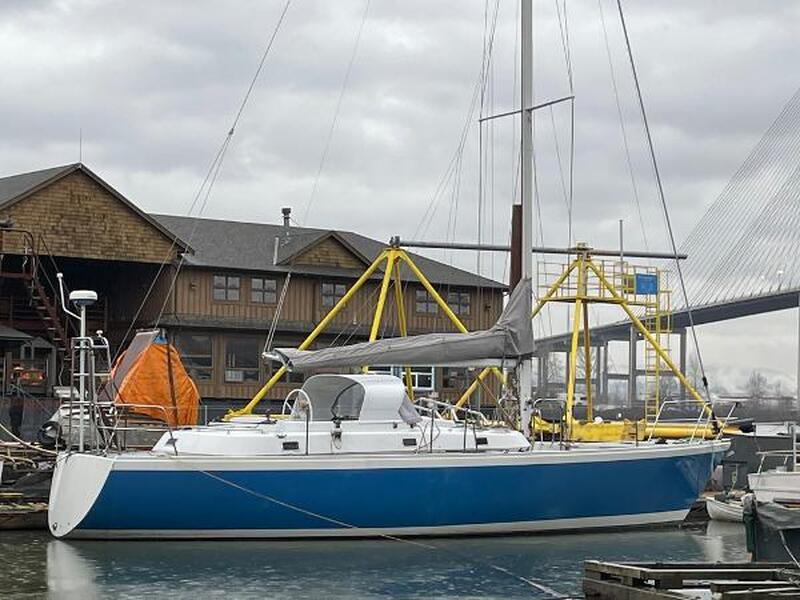

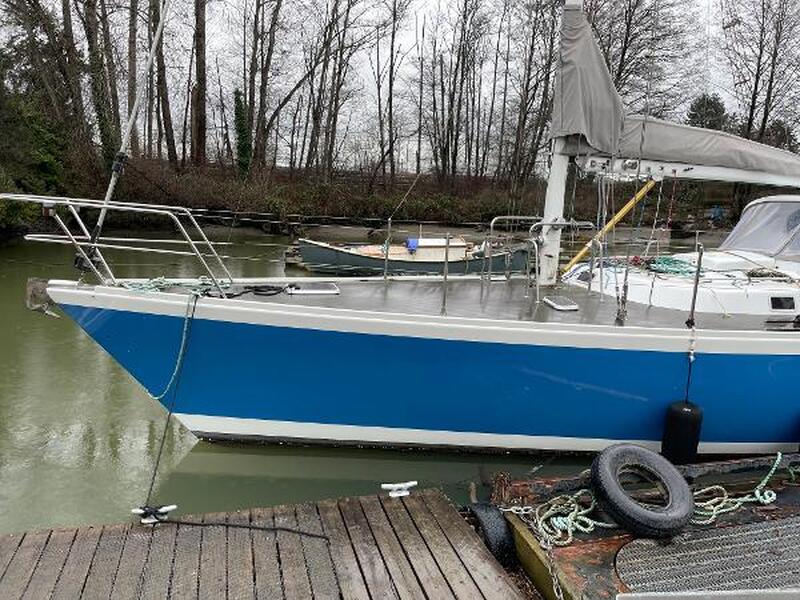

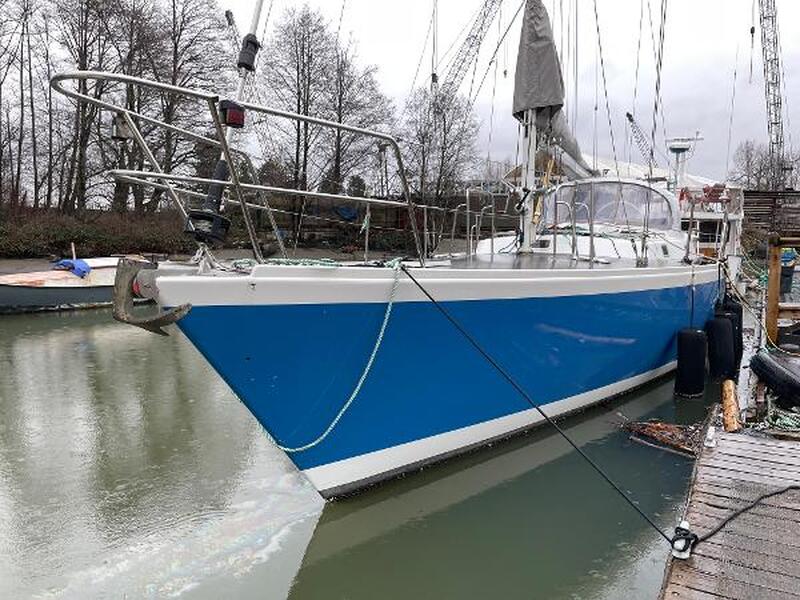

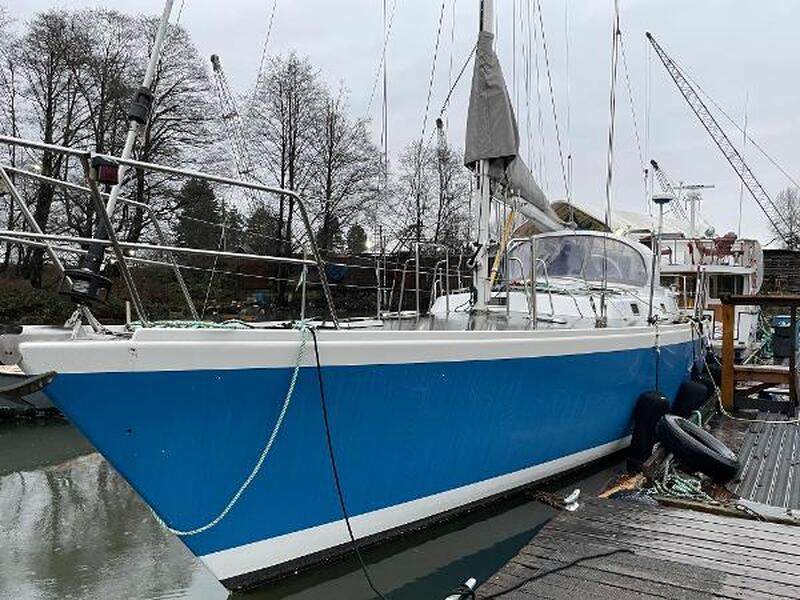

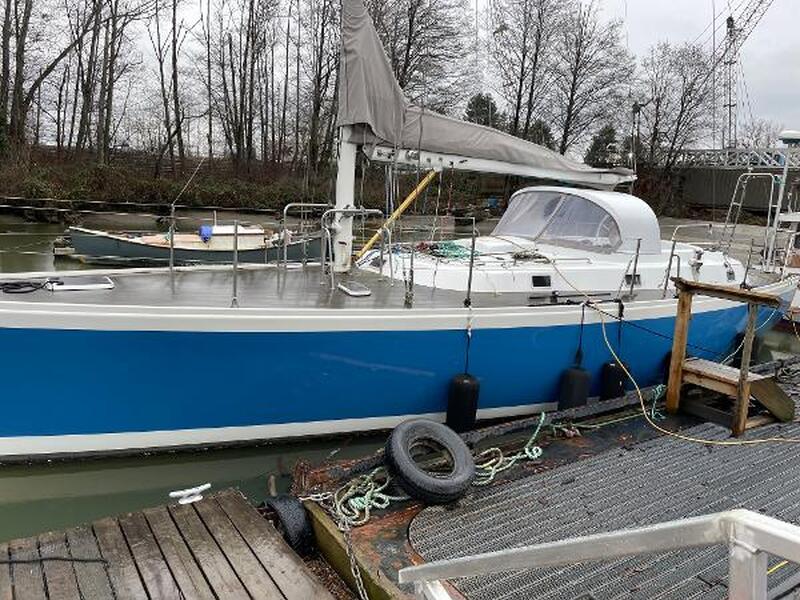

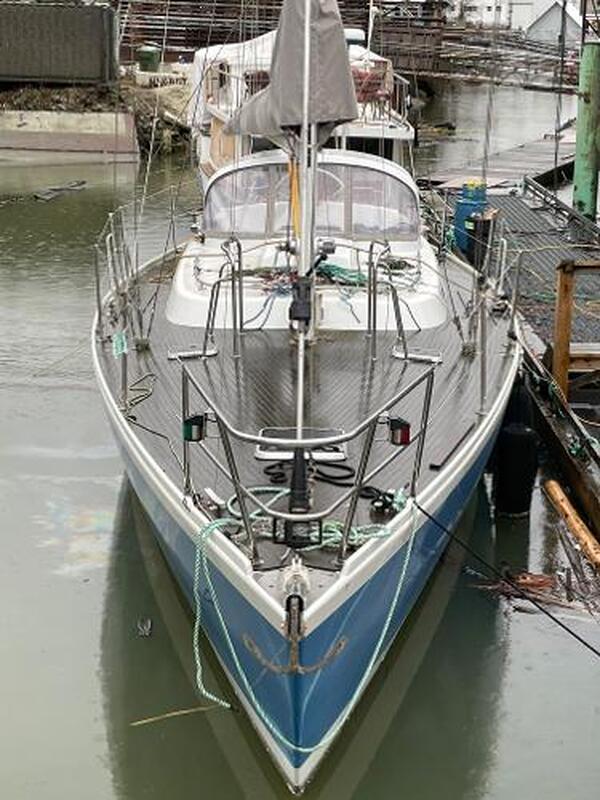

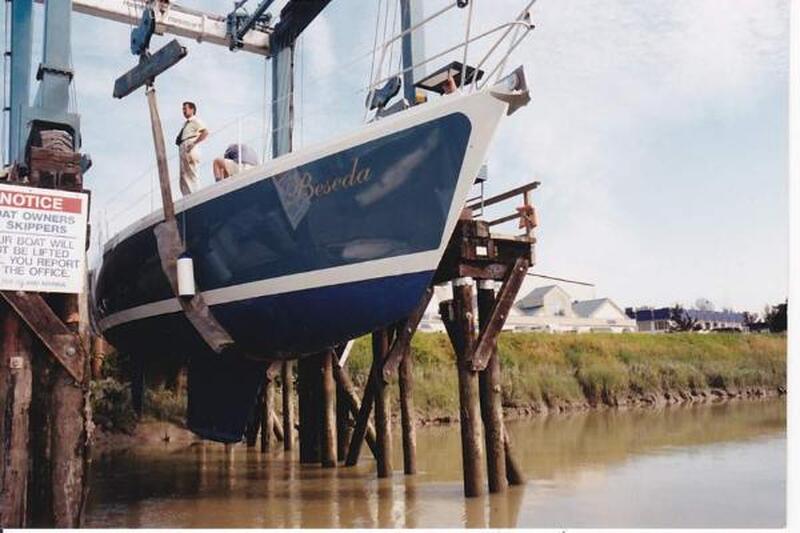

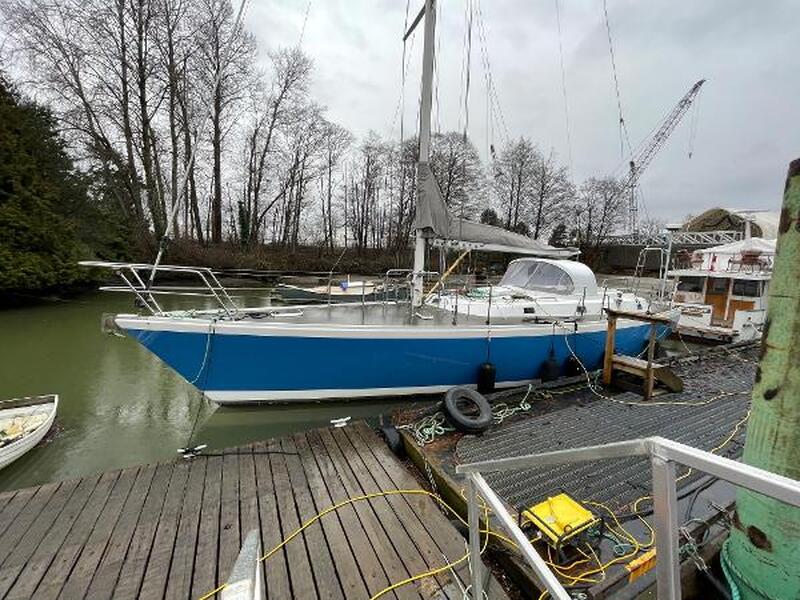

Near completion is this 51’ Custom Built Sloop of cold molded construction by designer Mike Pongracic of Northwest Delta Yacht Services. Owner has taken ill and this vessel needs a forever home with an individual with the passion and drive to complete her to its glory. Just launched into the water in 2022 after extensive work. Great feel good story with the sale of this soon to be beauty, as the owner is wanting to donate half the proceeds of the yacht sale to the Children's Hospital in Vancouver.

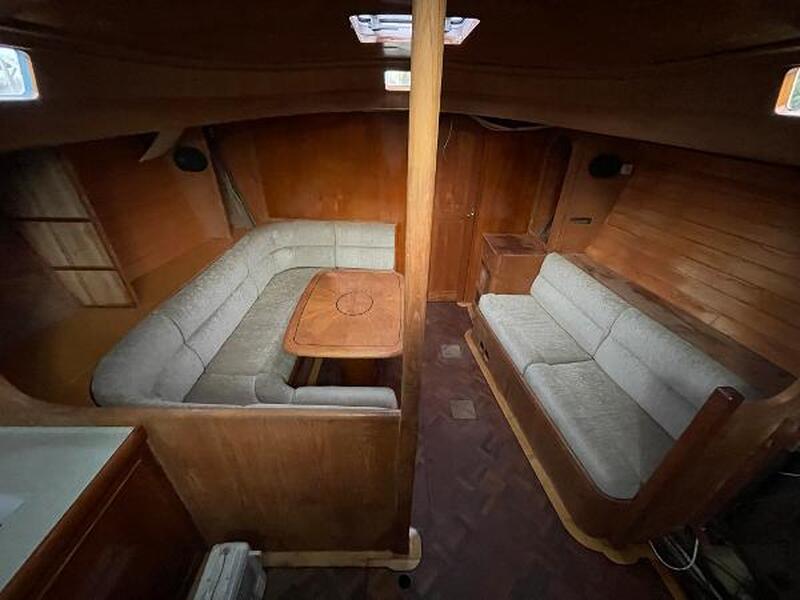

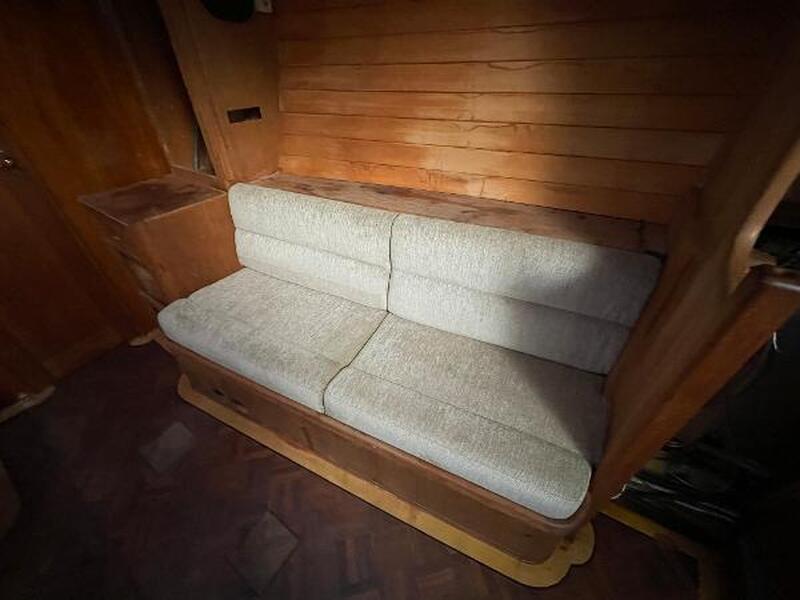

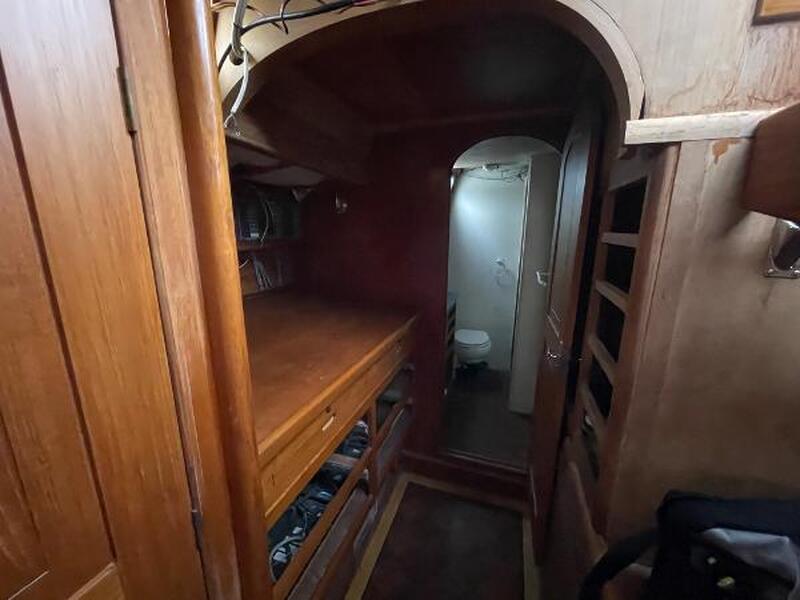

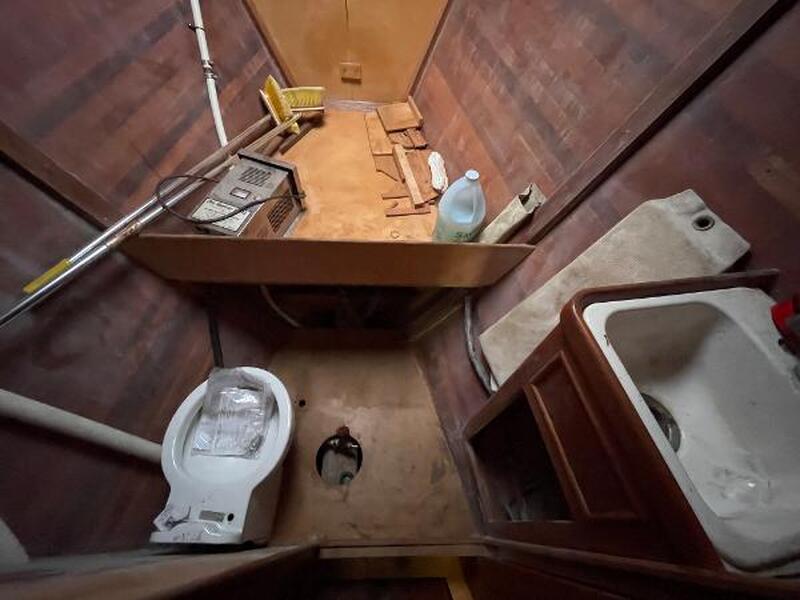

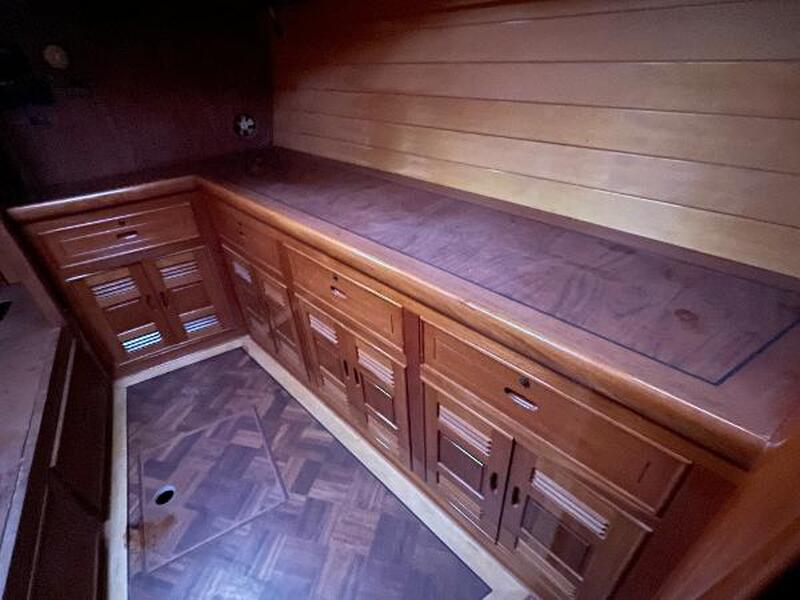

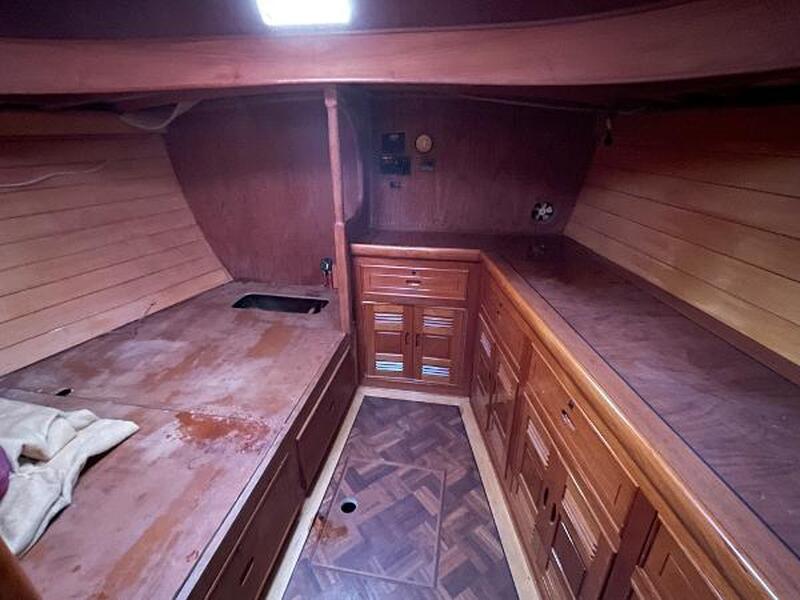

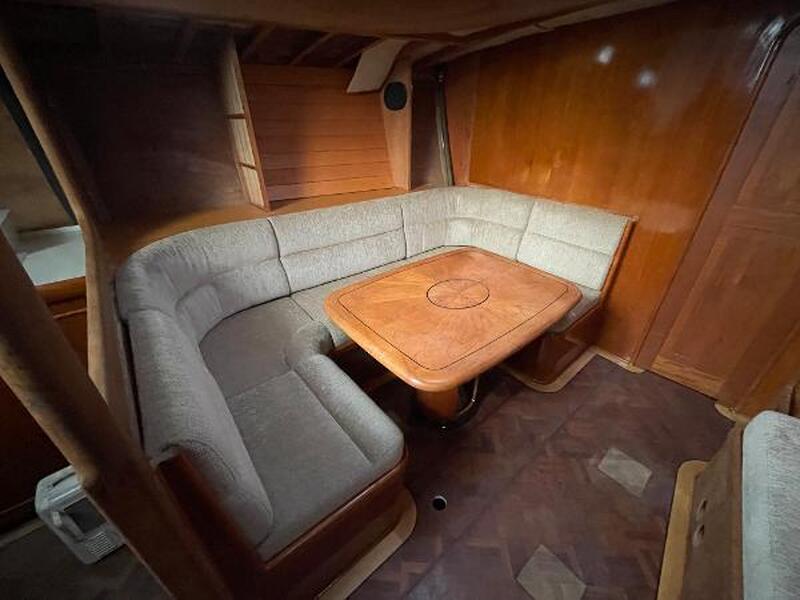

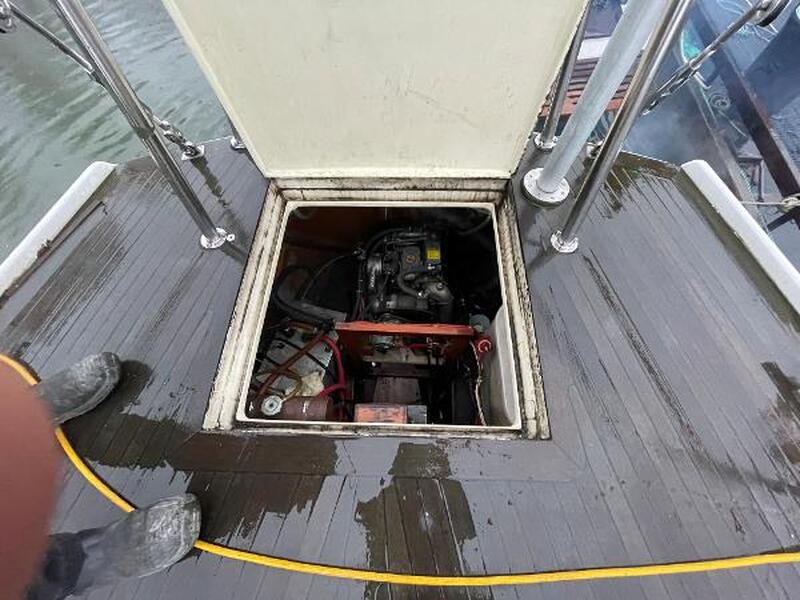

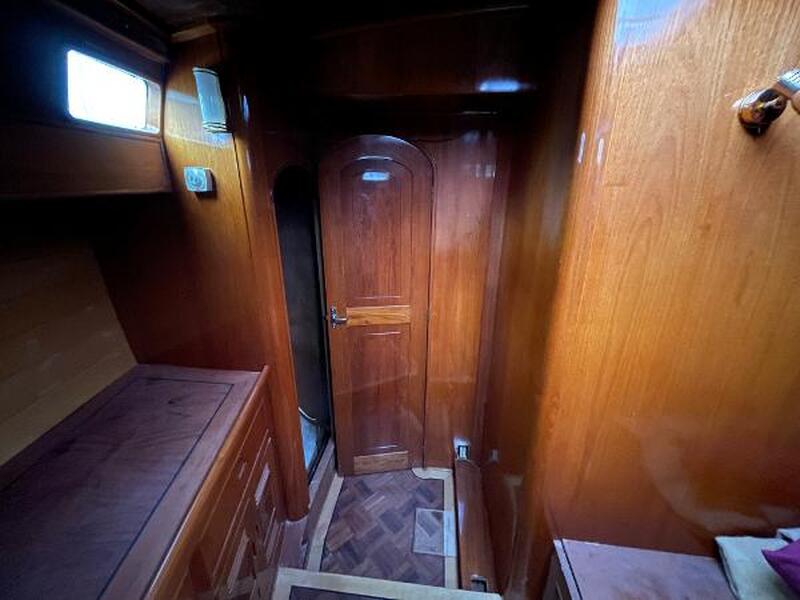

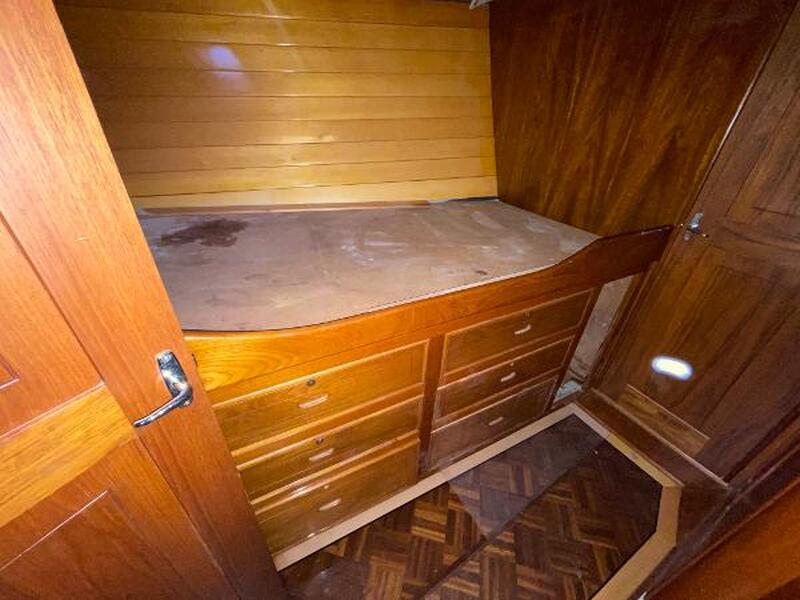

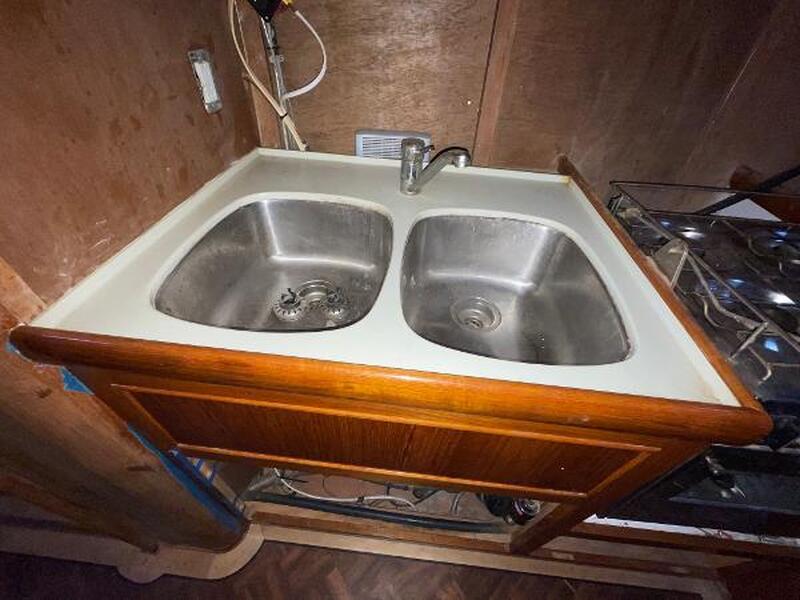

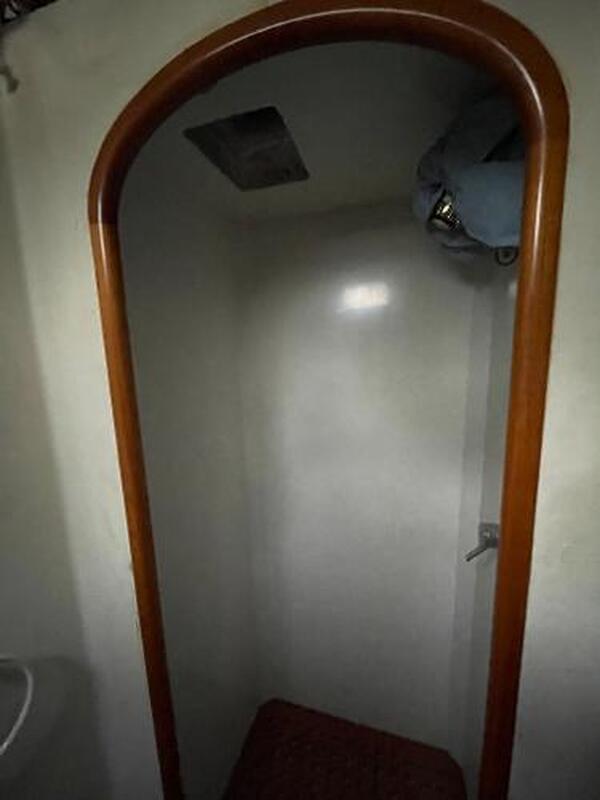

Layout has cable locker & head compartment forward with deck hatch above. Forward cabin with double berth port side & locker with desk to starboard side. Moving aft, locker & settee are starboard side with dinette to port. Galley is aft port side with companionway port aft leading to aft cabin. Main engine is below cabin entrance with access from either side. Companionway to starboard side leads to aft to head compartment with shower. Vessel finish is painted blue Awlgrip including cabin top & decks.

Dimensions:
LOA: 51’
Beam: 13’ 11”
Draft: 7’ 1”
Depth: 11.47’
Displacement: ~ 32,000 lbs.
Keel: ~ 12,600 lbs. lead

Engines:

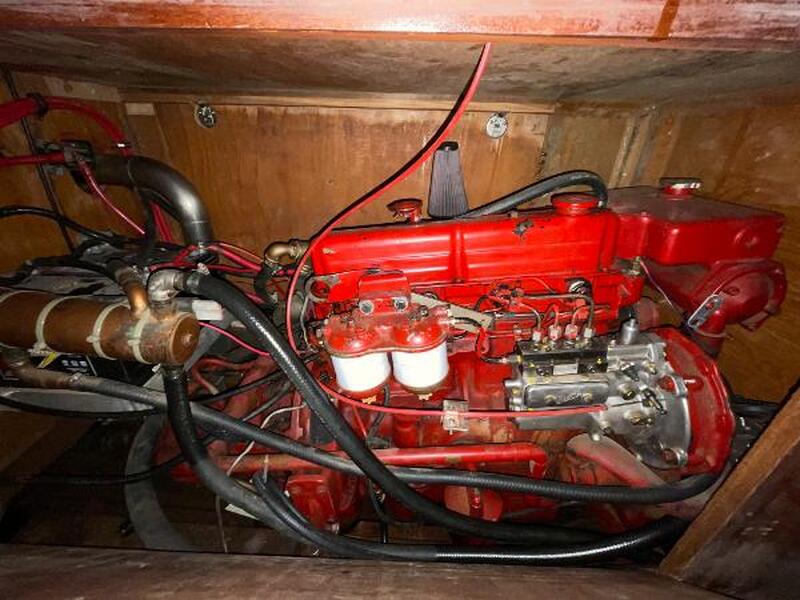

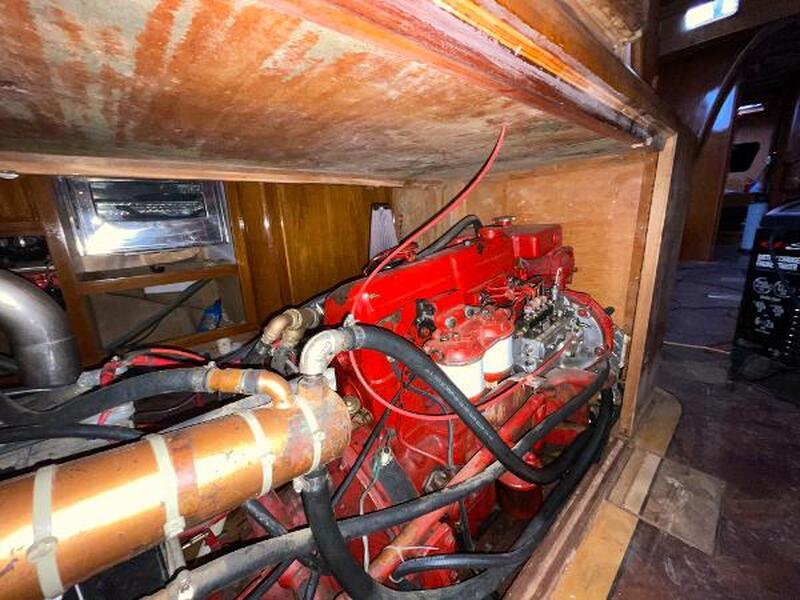

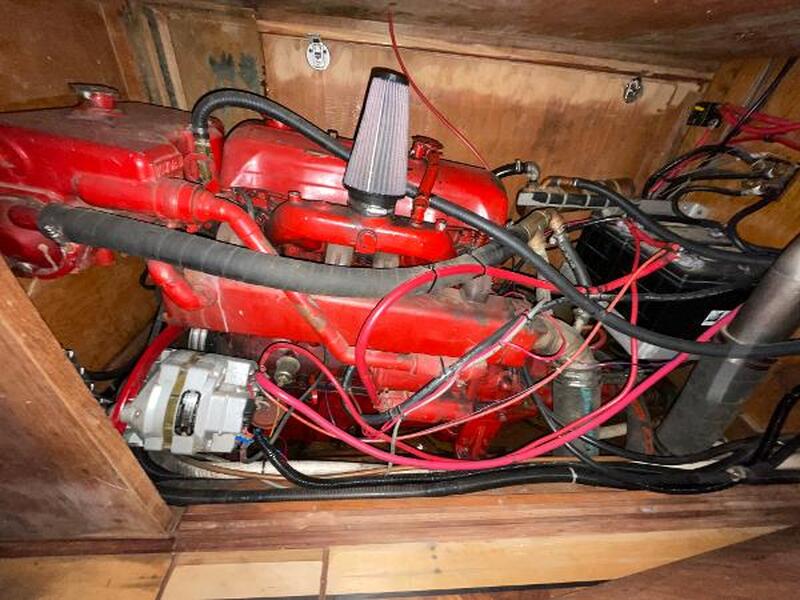

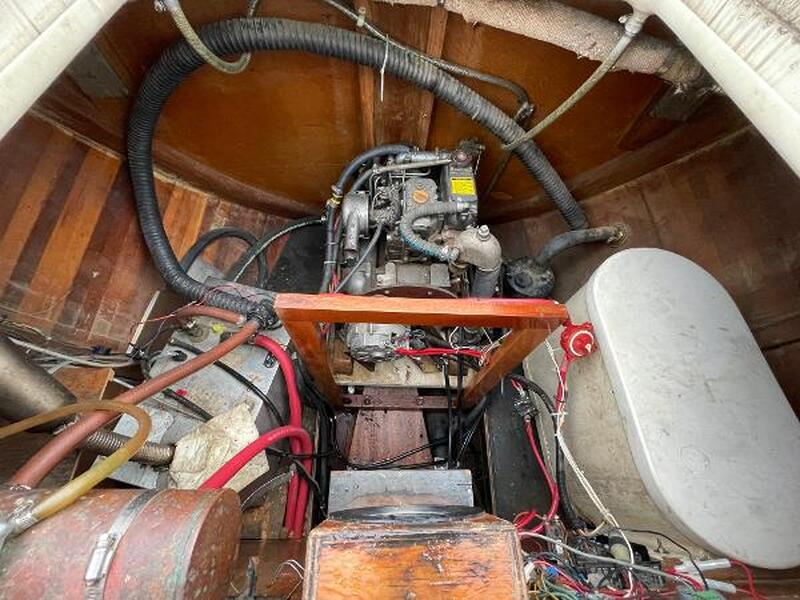

Main Engine brand: ~1995 Ford Lehman diesel
Main Engine model: Model 253
Main Engine power: 86 hp
Main Engine hours: 943
Max Speed: ~ 8 knots
Auxiliary Generator: 3.6 kW generator
Auxiliary Engine brand: Yanmar diesel 2 cylinder
Auxiliary Engine model: 2GML
Auxiliary Engine power: 7 hp

Propellers:
No. of Propellers: 1 @ 3-bladed Max prop
Propeller size: 1 @ 3-bladed max prop
Propeller shafts: 1-3/8” stainless steel
Propeller strut: Stainless steel with cutlass bearing

Tankage:
Fuel Tank: 6 welded aluminum
Fuel Capacity: ~ 1,000 L
Fresh Water: 2 stainless steel tanks
Fresh Water Capacity: ~ 600 L

Accommodations:
Cabins: 2
Berths: 5

General Construction:
Strakes: 4-layers cold molded, 3-cedar, 1-mahagony with 2 @ 10oz. fiberglass cloth & cold cure epoxy over. Total hull thickness approx. 1-1/2"
Frames: Approx. 2-1/4" x 1-1/2" mahagony @ approx. 18" centres

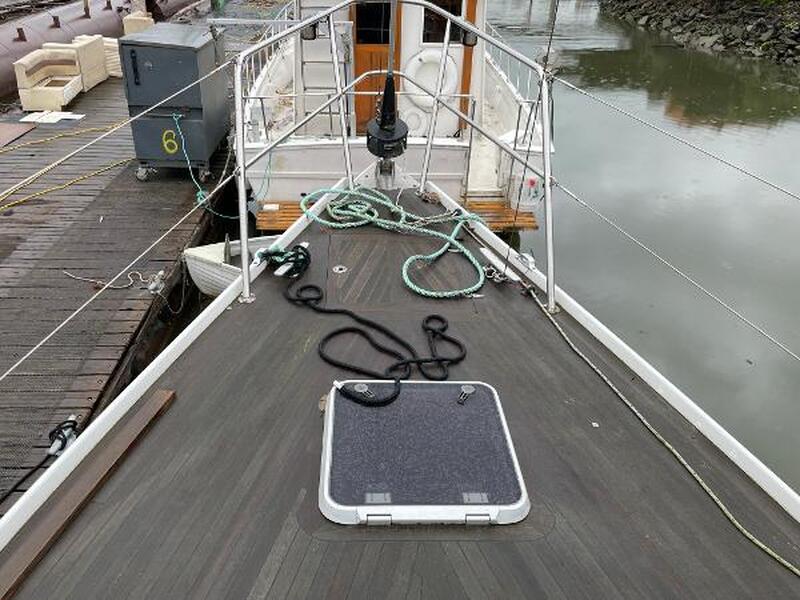

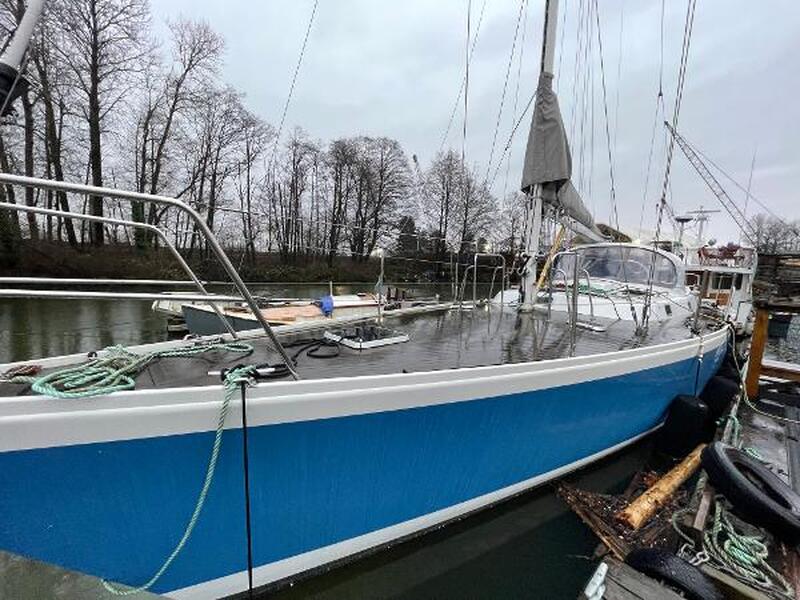

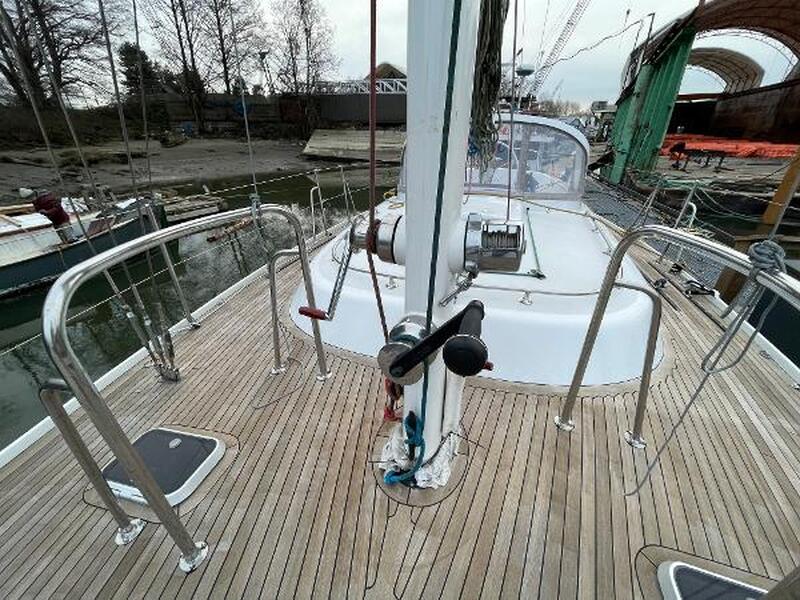

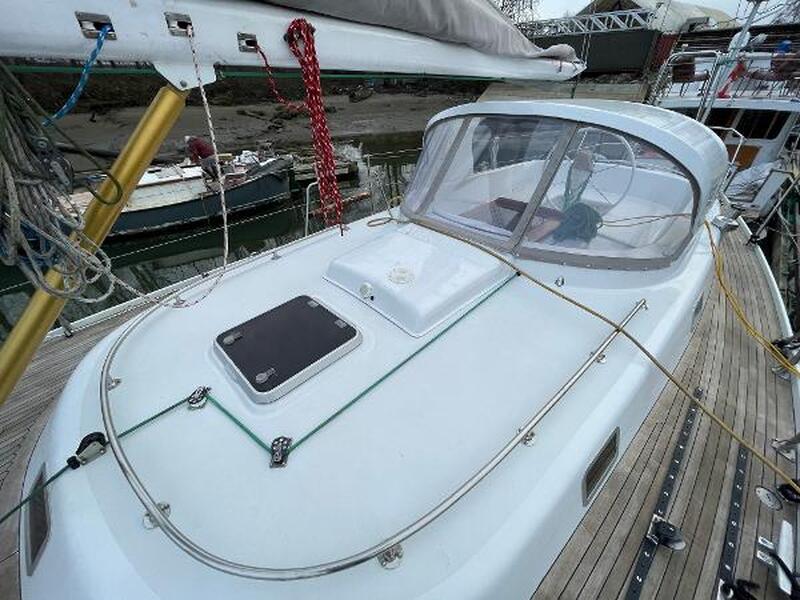

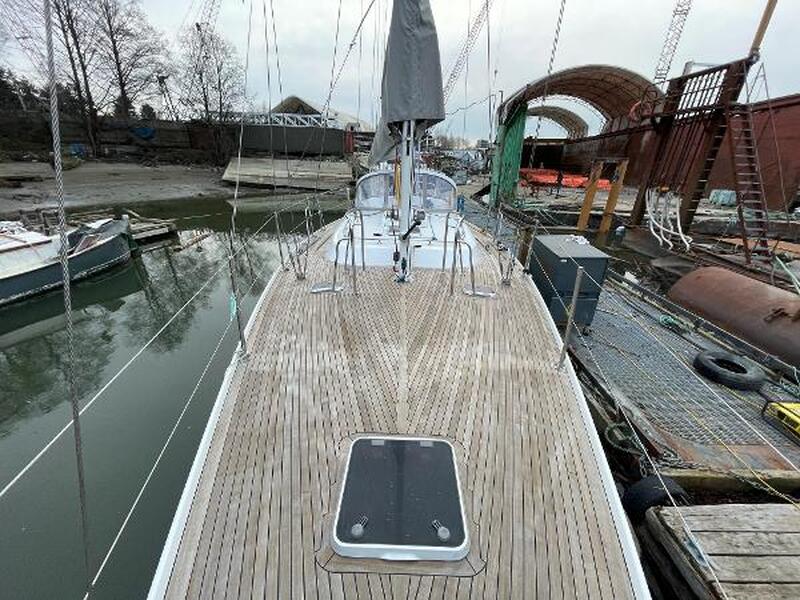

Deck: Cold molded as per hull with 5/16" teak planking over

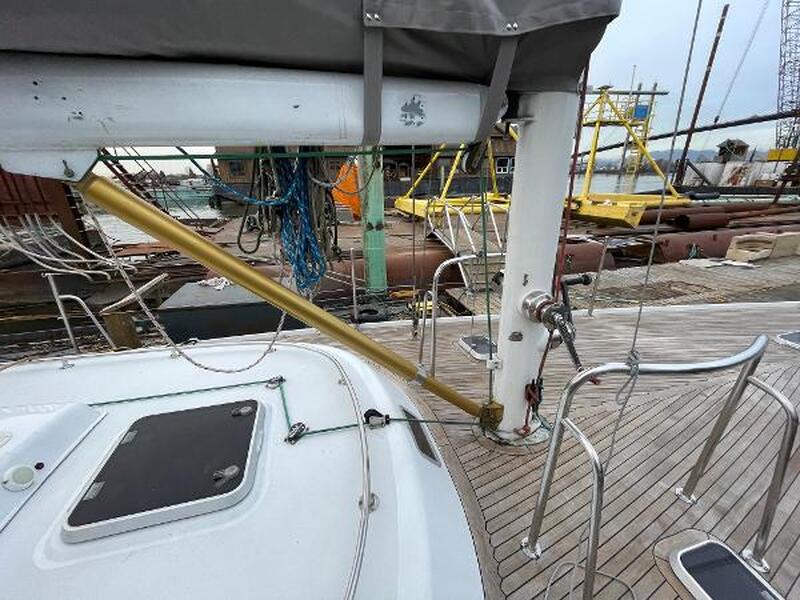

Masts: Approx. 68' overall length extruded aluminum, painted with gold Awigrip

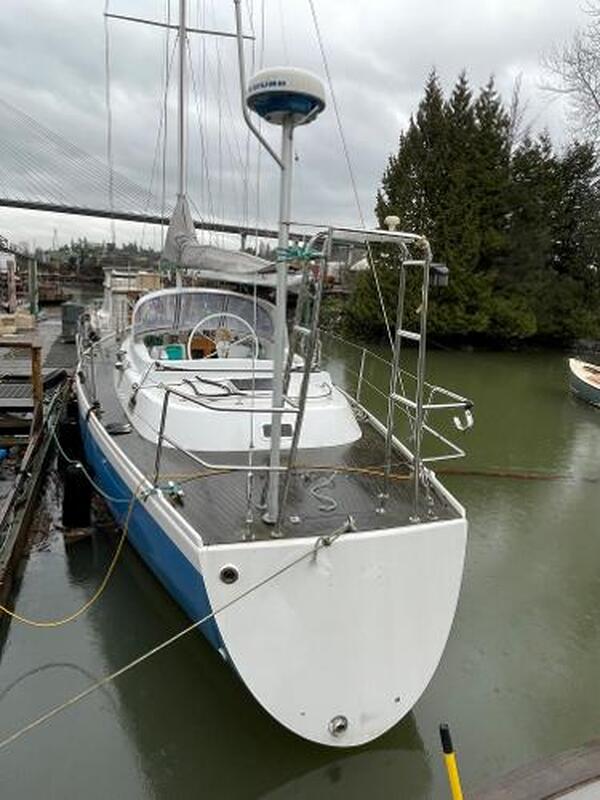

Transom: Curved
Stem: Raked
Fastenings: Stainless Steel
Hull Shape: Displacement
Caulking: Cold cure epoxy
Vessel well constructed

Batteries:
2 @ 200 Series 12V start batteries
6 @ 6V Trojan House batteries
Location: Secured & protected below settee & in machinery space with shut offs

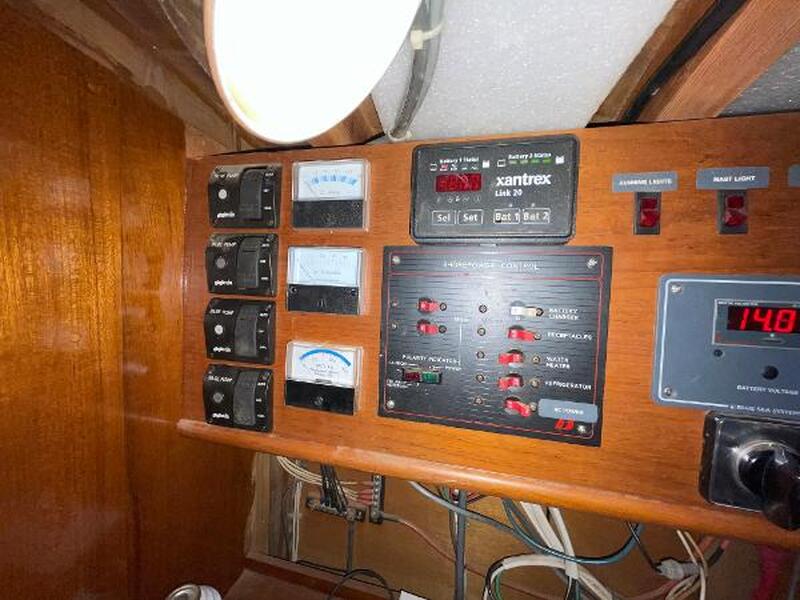

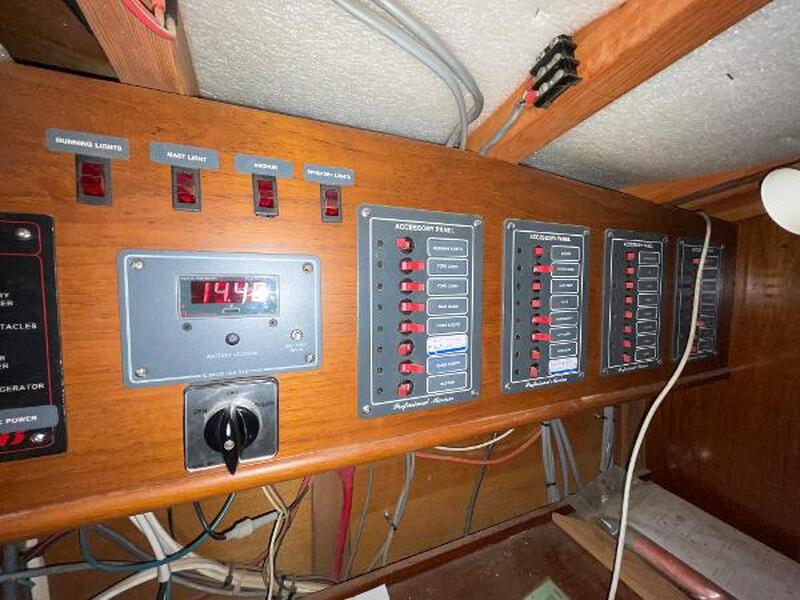

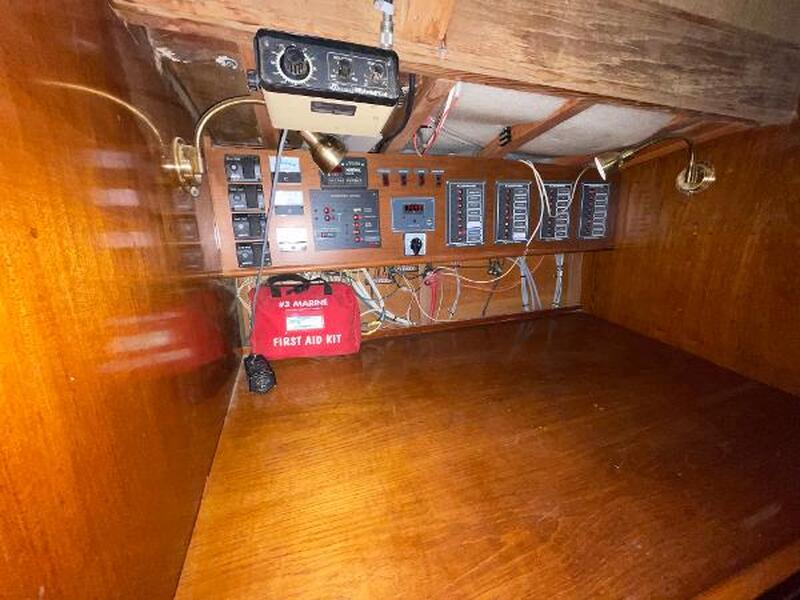

Electrical Supply:
80 amp alternator on main engine
40 amp stainless steel Promariner battery charger off 110V

Wiring:
Type: Plastic Insulated
Condition: sound
Overload protection: circuit breaker
Shower Power connection: Yes with breaker & polarity indicator

Steering:

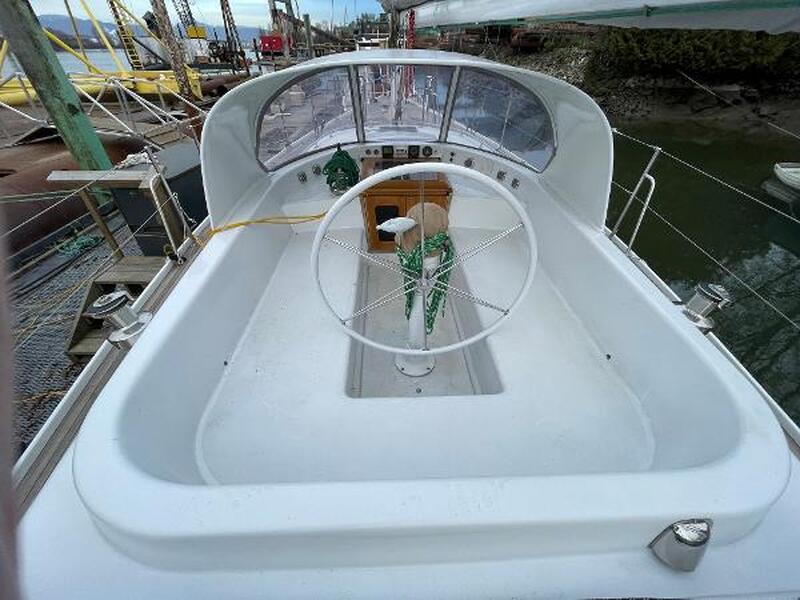

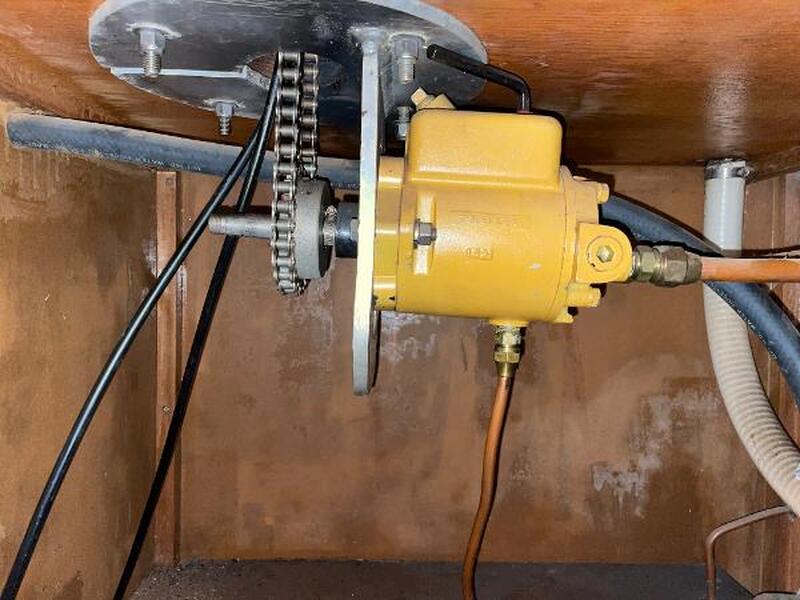

Make/Type: Teleflex hydraulic to Yacht Specialities wheel & pedestal
Rudders: One, fibreglass, foam stainless steel internal frame and stock
Emergency steering: Tiller off rudder post

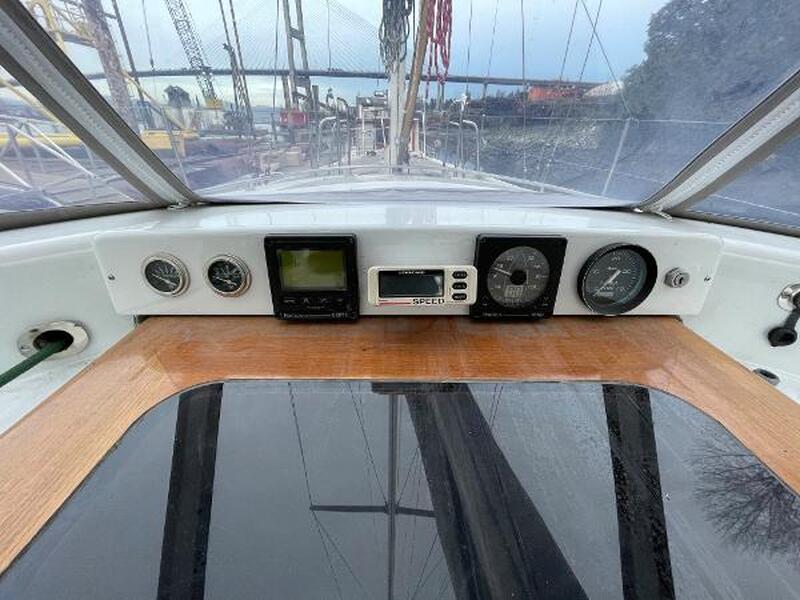

Navigational Equipment:

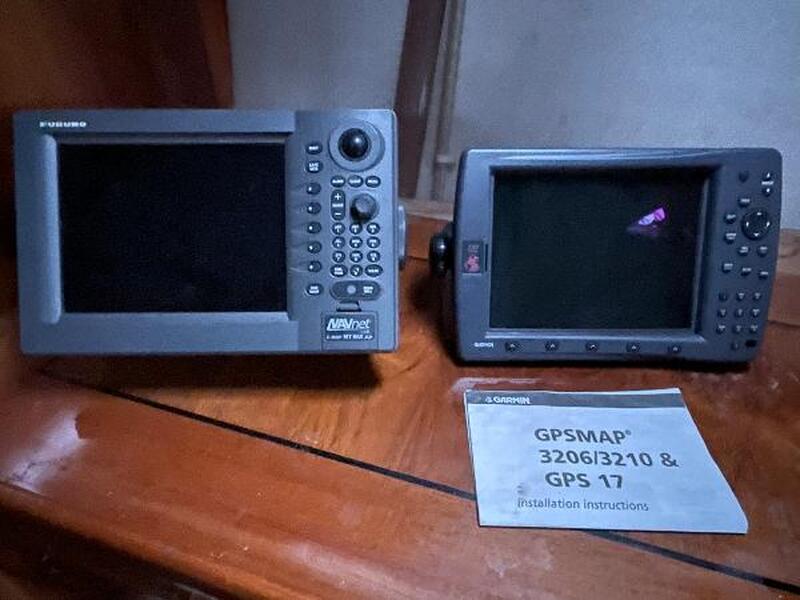

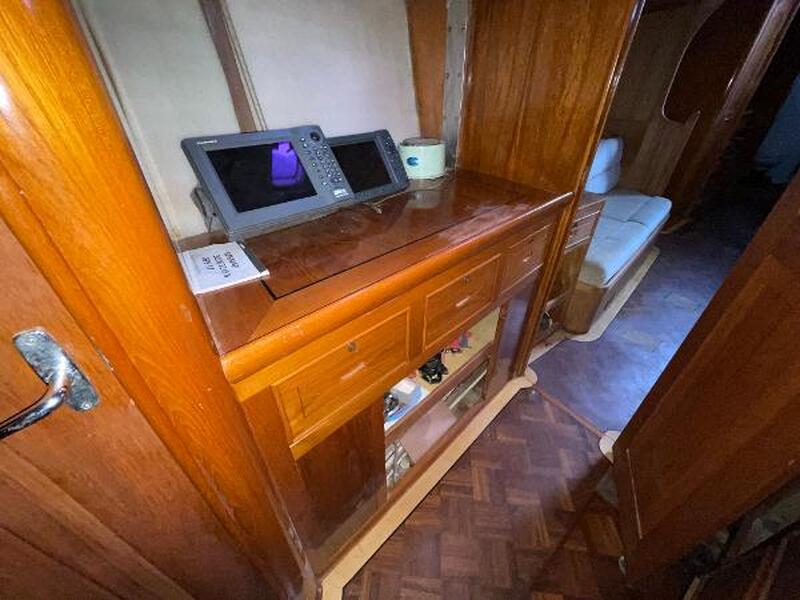

Chartplotter: Garmin GPSMAP 3206/3210 & GPS 17
Radar: Furuno 24-Mile
GPS: Furuno
Radio(s): I-Com VHF plus 1-hand-held
Echo Sounder: Horizon
Auto Pilot: Wagner S50 pilot
Compass: 5”
Speed Indicator: Horizon
Other: Clarion am/fm cd player

Cabin Equipment:

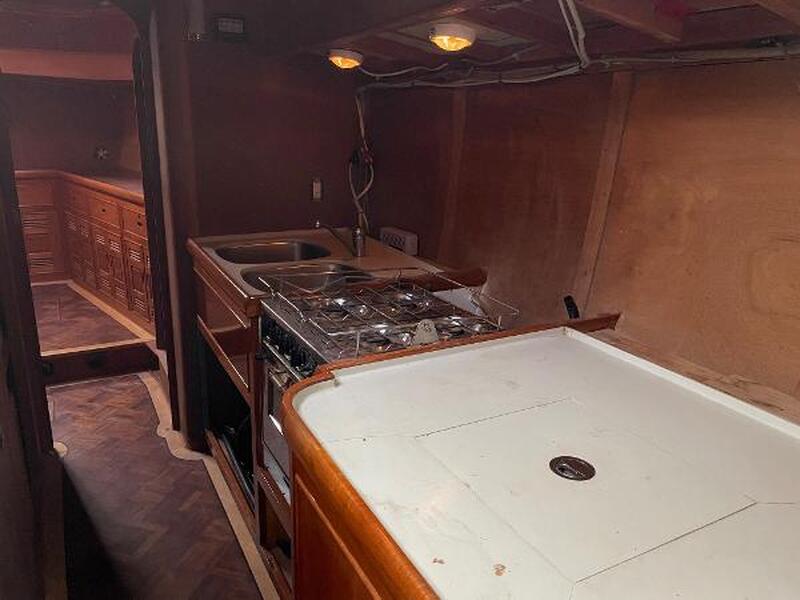

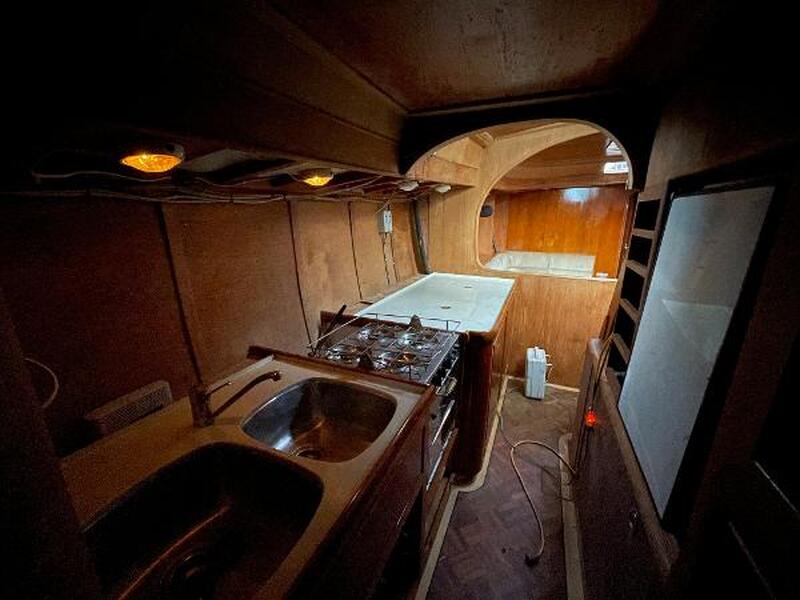

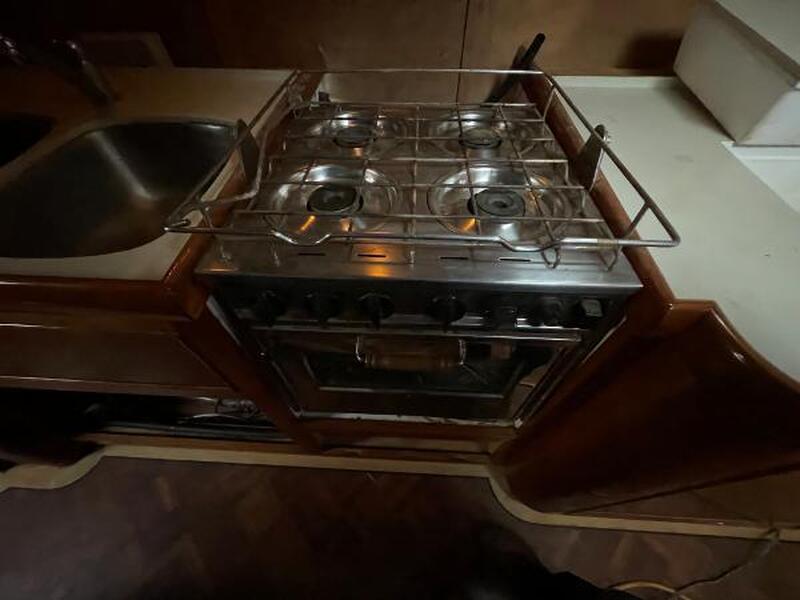

Stove: Marine Stainleiss Steel Limited 4-burner propane with oven

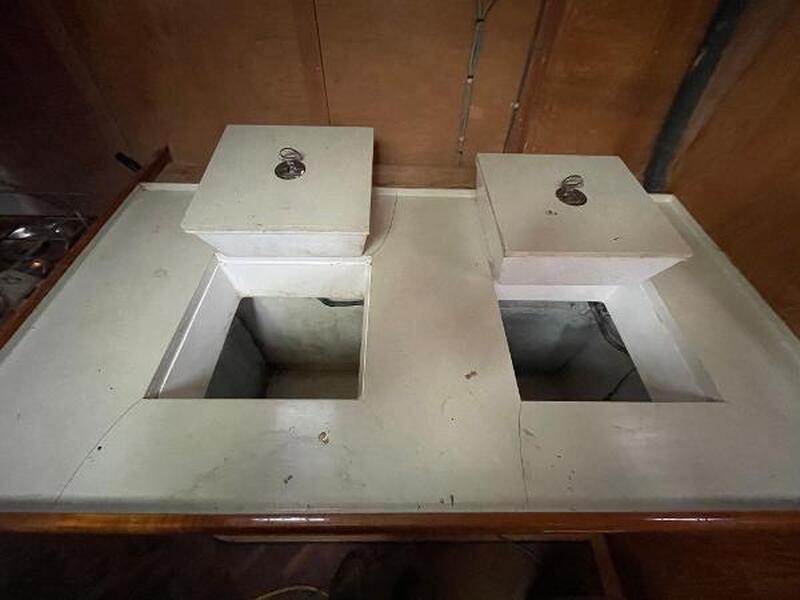

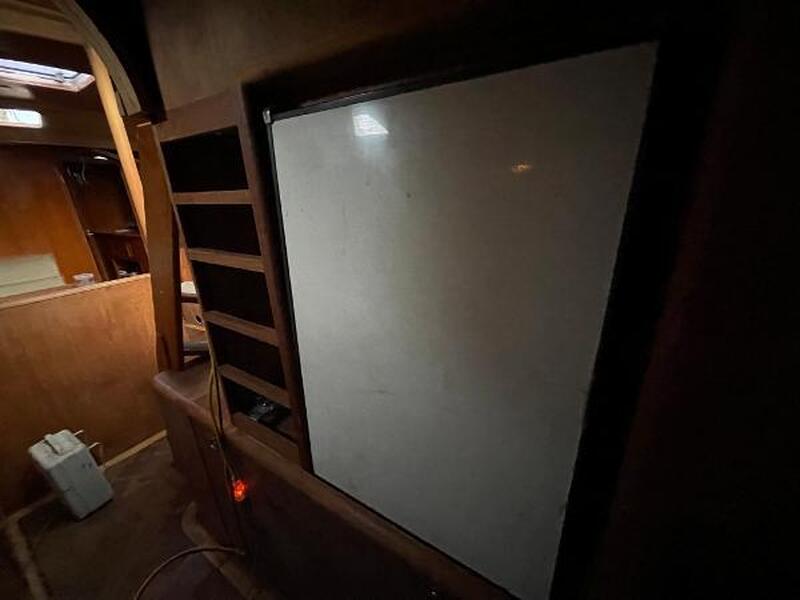

Refrigeration: Electric Fridge/Freezer plus Norcold refrigeration

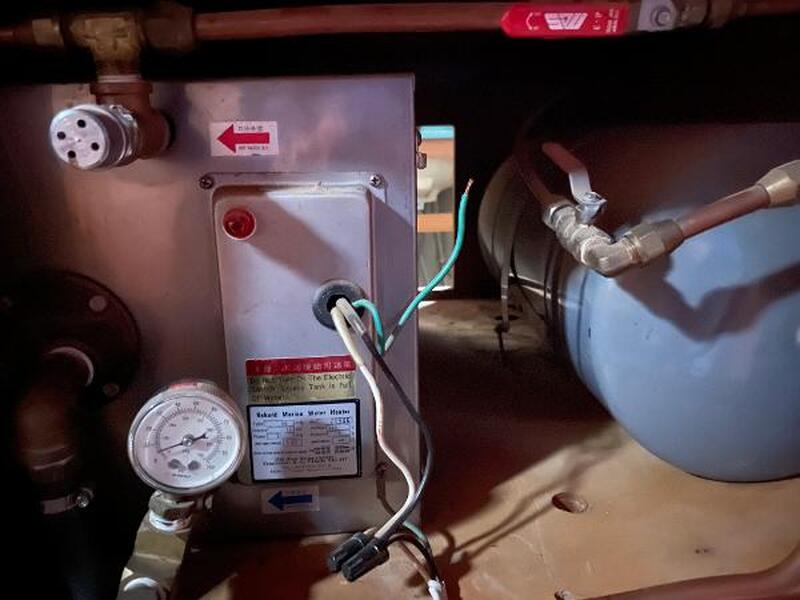

Heating: by Hurricane, diesel fired hot water heating system

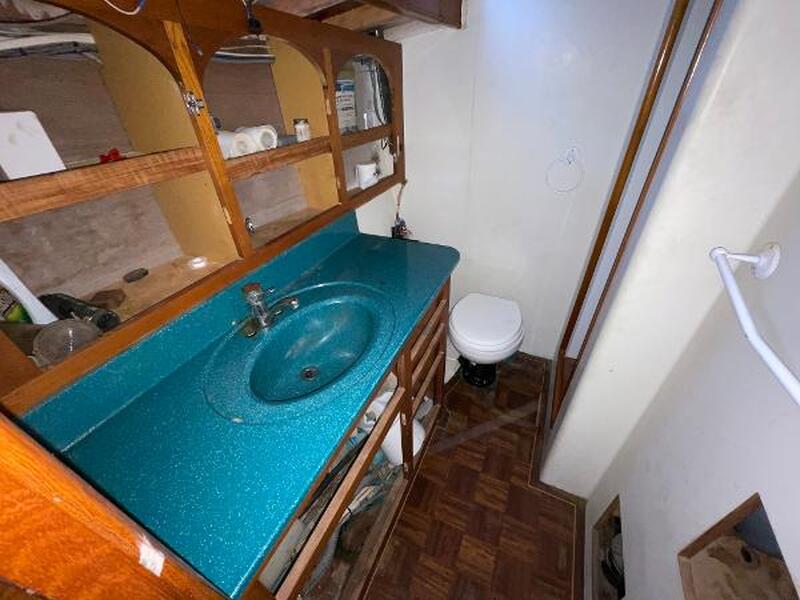

Other: Vacu-Flush head

Ground Tackle:

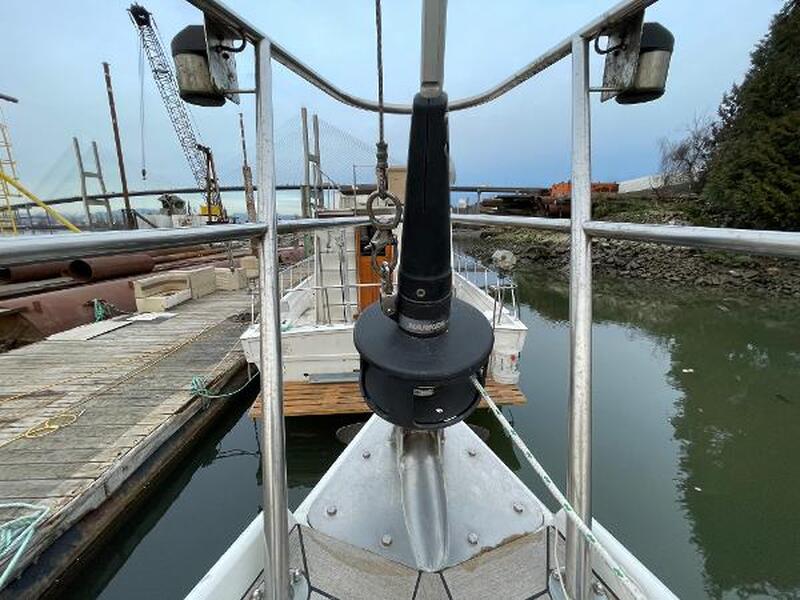

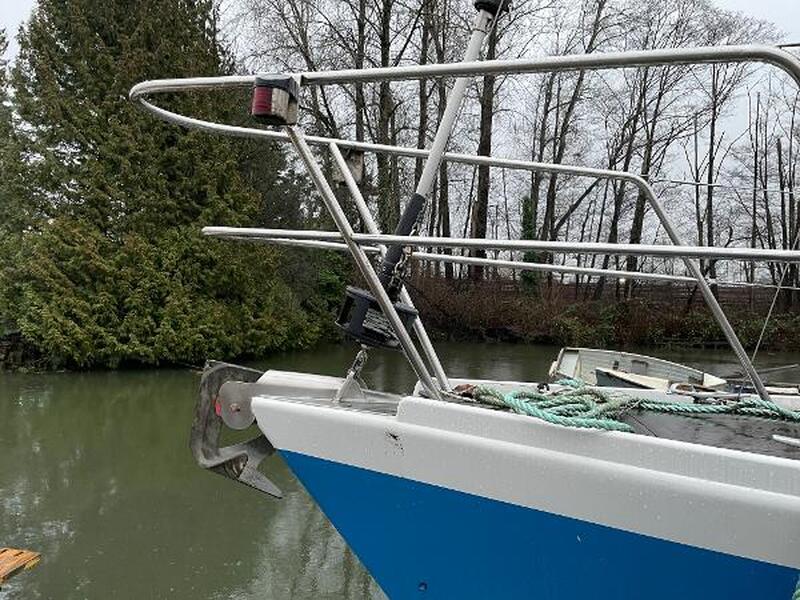

Anchor: 20 Kg Bruce
Anchor Winch: Muir electric with foot switches
Cable: ~ 460’ - 3/8 galvanized chain

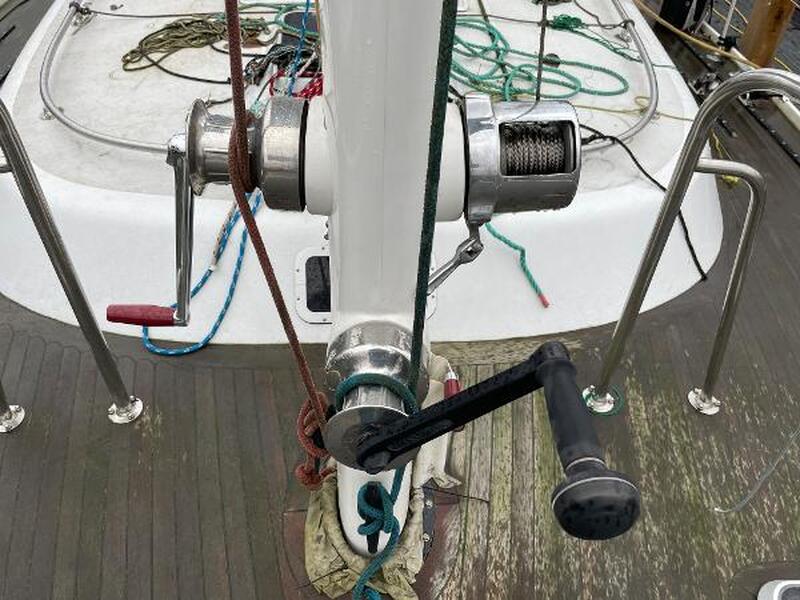

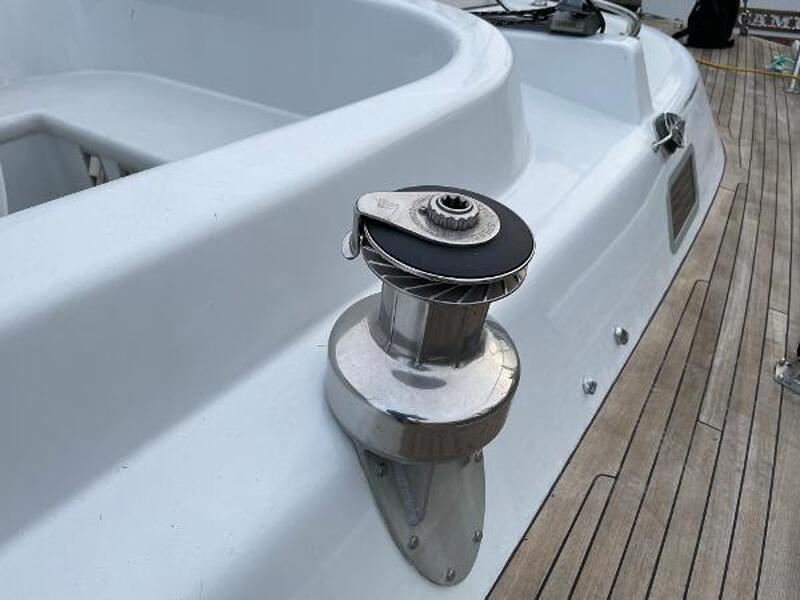

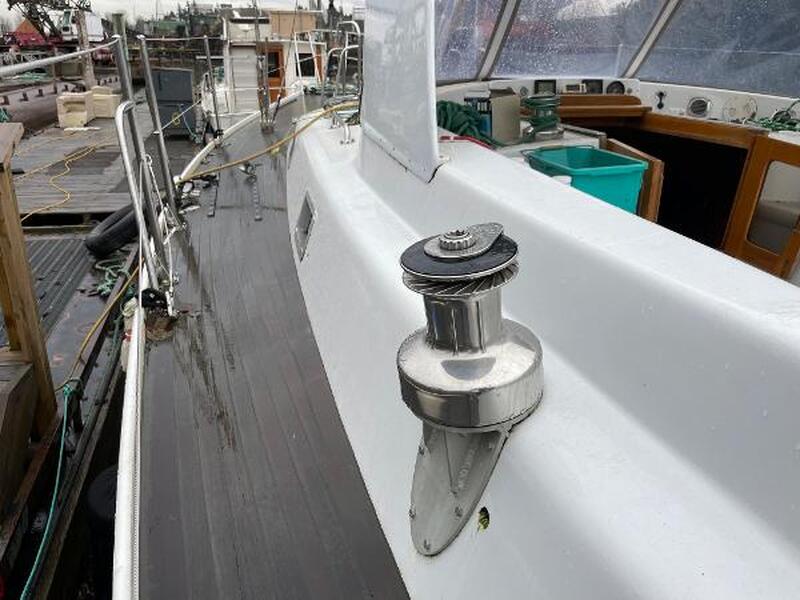

Winches:
2 @ Anderson 40 -2 speed
1 @ Barlow Halyard
2 @ Anderson 56 self tailing
1 @ Anderson 40 self tailing

Sails:
Main: 10 oz Dacron (1997) Maker: Dobson
150% Genoa: 6 oz Dacron (1990) Maker: Dan James
#2 Genoa: 8 oz Dacron (1990) Maker: Dan James
Blade: 8 oz Dacron (1990) Maker: Dan James
Tri-radial Spinnaker: 3/4 oz Nylon (1990) Maker: Dan James

Reefing: Jiffy & Harken roller furling

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
